Source Driver IC


PT16103

The PT16103 is a CMOS silicon source driver IC for active matrix TFT LCD panels. After a CMOS/RSDS 6-bit RGB data is applied, this device will generate 64-gray scale for driving the TFT LCD panel source lines. It supports 480/402 channel selectable function, shift right/left selectable function, and cascade function for dot expansion

FEATURES


● 64-gray scale source driver for active matrix TFT LCD panels

● Selectable 480/402 output channels

● Logic voltage power supply: 2.7V to 3.6V

● High voltage power supply: 7.0V to 13.5V

● Maximum RSDS operating frequency at 85 MHz

● Bi-directional shift right/left function

● Package Type -COG

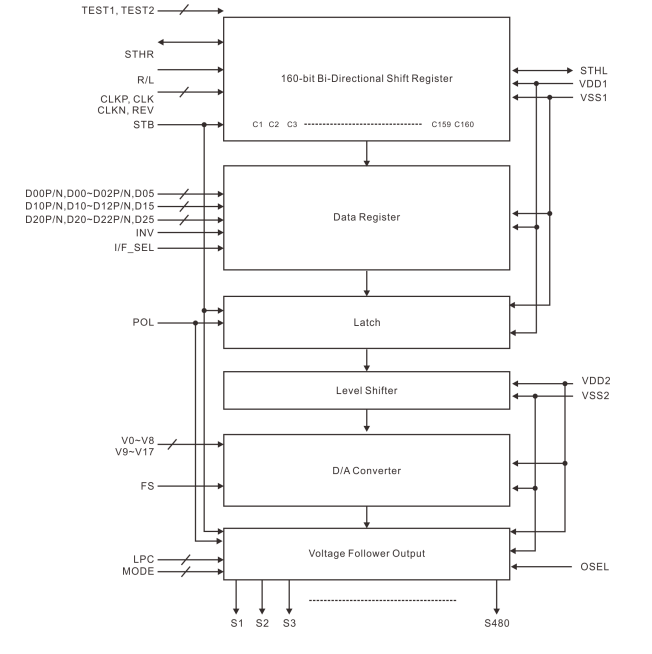

● Block Diagram



APPLICATIONS


●
