FEATURES
● Switching between 1/2 bias and 1/3 bias drive techniques under serial data control
- When 1/4-duty: Capable of driving up to 280 segments
- When 1/3-duty: Capable of driving up to 213 segments
● Serial data input supports serial format communication with the system controller (Support 3.3V and 5V operation)
● Serial data control of the power-saving mode based backup function and the all segments forced off function
● Serial data control of switching between the segment output port and general-purpose output port function.(Support for up to 8 general-purpose output ports)
● Support for the PWM output function of a maximum of 6 ch (It can output from the general-purpose output port)
● Support for clock output function of 1ch (It can output from the general-purpose output port)
● Serial data control of the frame frequency of the common and segment output waveforms
● Serial data control of switching between the internal oscillator operating mode and external clock operating mode
● High generality, since display data is displayed directly without the intervention of a decoder circuit
● Built-in display contrast adjustment circuit.
● The /INH pin allows the display to be forced to the off state
● Incorporation of an oscillator circuit (Incorporation of resistor and capacitor for an oscillation)
● AEC-Q100 grade 2 compliant for automotive applications
● Package -LQFP80

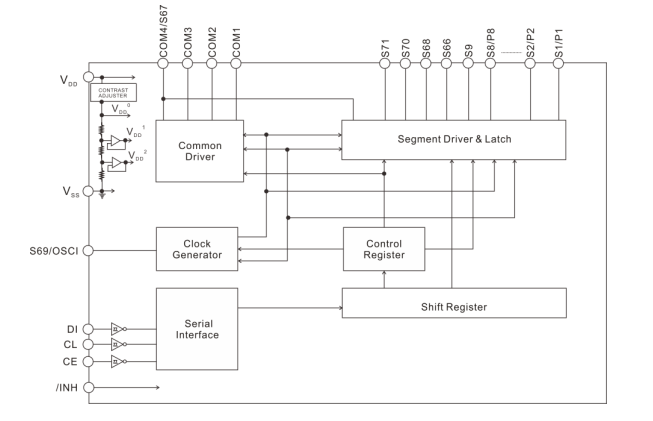

● Block Diagram
