FEATURES
● Support Resolution
-360RGB x 180,480RGB x 240
-540RGB x 180,700RGB x 350
-800RGB x 480,840RGB x 294
-1280RGB x 240,1440RGB x 300
(If other resolution is intended to use, please confirm with PTC)
● Display Color: 16.7M/262K color
● Source Output: 480 outputs
● Gate Output: 16 outputs (total 32 outputs on both side)
● MUX Output: 3/6/9 outputs
● VCOM Scheme: capacitive coupling
● Input Interface
- RGB: 24/18 bits
- PCLK: 4.5 ~ 35MHz
- 3/4 wire serial command interface
- LVDS: 24 /18 bits
- CLKP/CLKN: 4 ~ 35MHz
● Output DAC / AMP Specification
- Source output potential: 0.2~6.0V
- Source Settling Time:2.2µs
● RGB independent 18-point Gamma-DAC adjustment
● VCOM Output Specification
- VCOMAC Output Swing:6.0V max.
- VCOMDC Output Adjustment
● OTP
- 576 bytes user writable
· Main Specifications
- Analog Power: 2.6 ~ 3.6V
- Interface Power: 1.6 ~ 3.6V
- Logic Power: Typical 2.0V
- Source Driver Power: 4.9 ~ 6.4V
- Panel Signal Power (positive): 5.7 ~ 12.0V
- Panel Signal Power (negative): - 10.5 ~ -5.5V
ASW Signal (negative) (optional): - 4.8 ~ -0.3V
- VCOM Voltage Swing: 3.65 ~ 6.0V
- VCOM Center Voltage: 0.65 ~ 3.0V
● AEC-Q100 Grade1 Compliant for Automotive Applications
● Package-COG

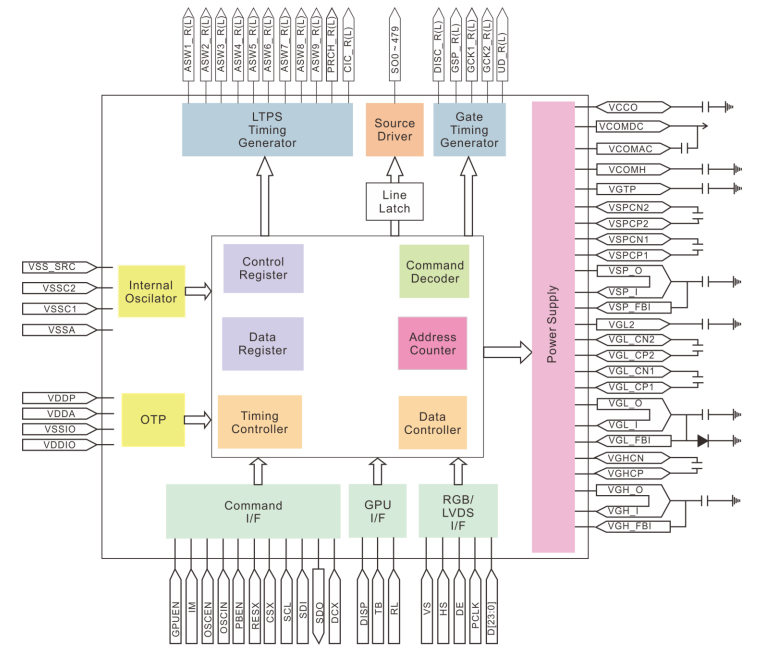

● Block Diagram
