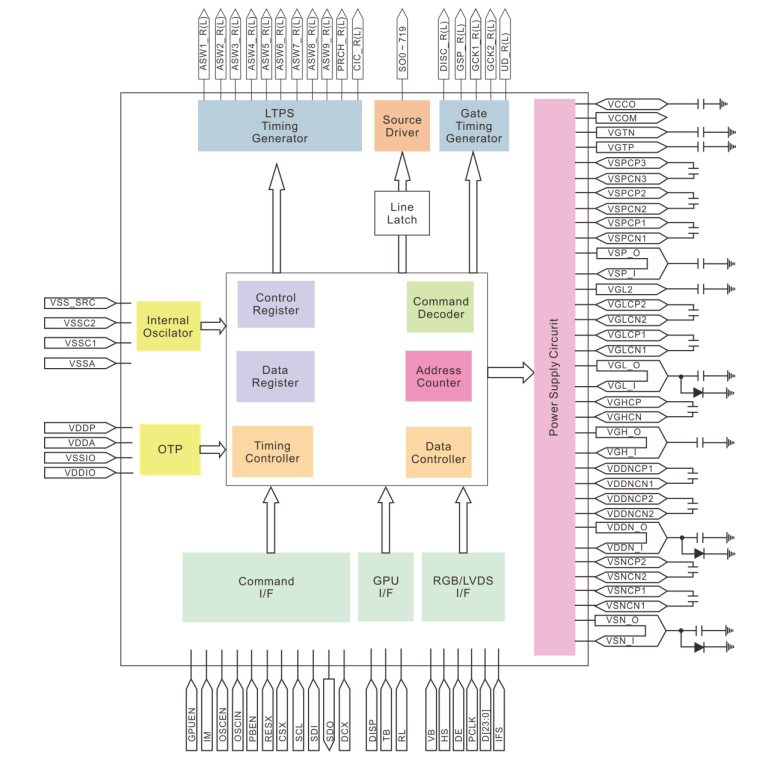

FEATURES
● Support Resolutions
- 640 RGB x 480
- 800 RGB x 480
- 1060 RGB x 720
- 1280 RGB x 560, 1280 RGB x700
- 1440 RGB x 300
- 1600 RGB x 320
- (If other resolution is intended to use, please confirm with PTC)
● Display Color: 16.7M/262K color
● Source Output: 720 outputs
● Gate Output: 16 outputs (total 32 outputs on both side)
● MUX Output: 3/6/9 outputs
● VCOM Scheme: DC
● Input Interface
- RGB: 24/18 bits
- PCLK: 4.5 ~ 60MHz
- 3/4 wire serial command interface
- LVDS: 24 /18 bits
- CLKP/CLKN: 4.5 ~ 60 MHz max
● Output DAC / AMP Specification
- Source output potential: ±0.2 ~ ±7.4V
- Source Settling Time:2.2µs
● RGB independent 18-point Gamma-DAC adjustment
● VCOM Output Specification
- VCOM DC Output Adjustment: -1V ~ 0V
● OTP
- 576 bytes user writable
● Main Specifications
- Analog Power: 2.6 ~ 3.6V
- Interface Power: 2.6 ~ 3.6V
- Logic Power: Typical 2.0V
- Source Driver Power: 4.6 ~ 7.7V
- Panel Signal Power (positive): 5.7 ~ 12.0V
- Panel Signal Power (negative): -10.0 ~ -5.0V
● Package-COG
